01
Confirm Specifications
We confirm the panel, resolution, refresh rate, interfaces, housing, stand, firmware, destination market, order quantity and required delivery schedule before the quotation is finalized.

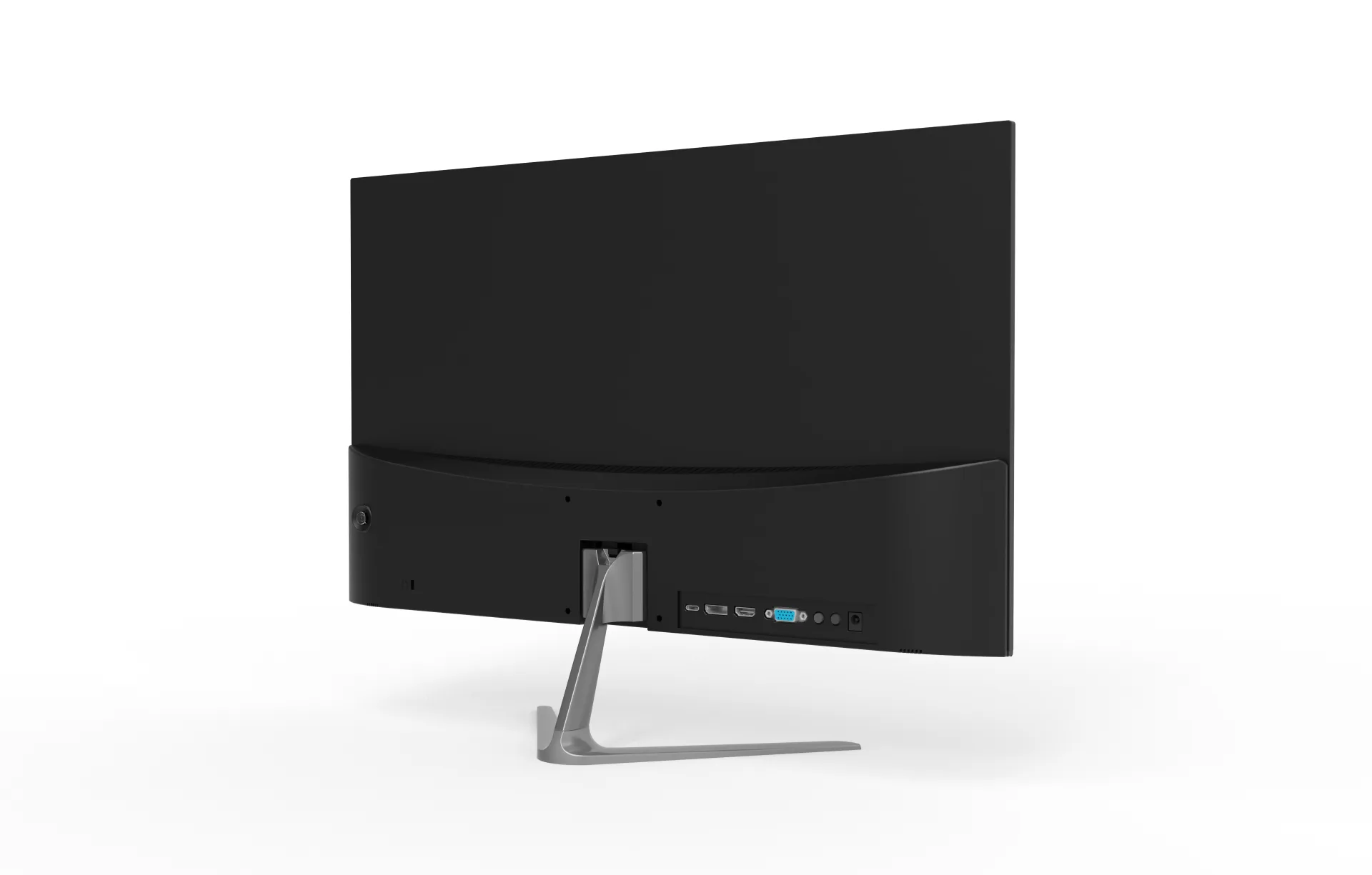

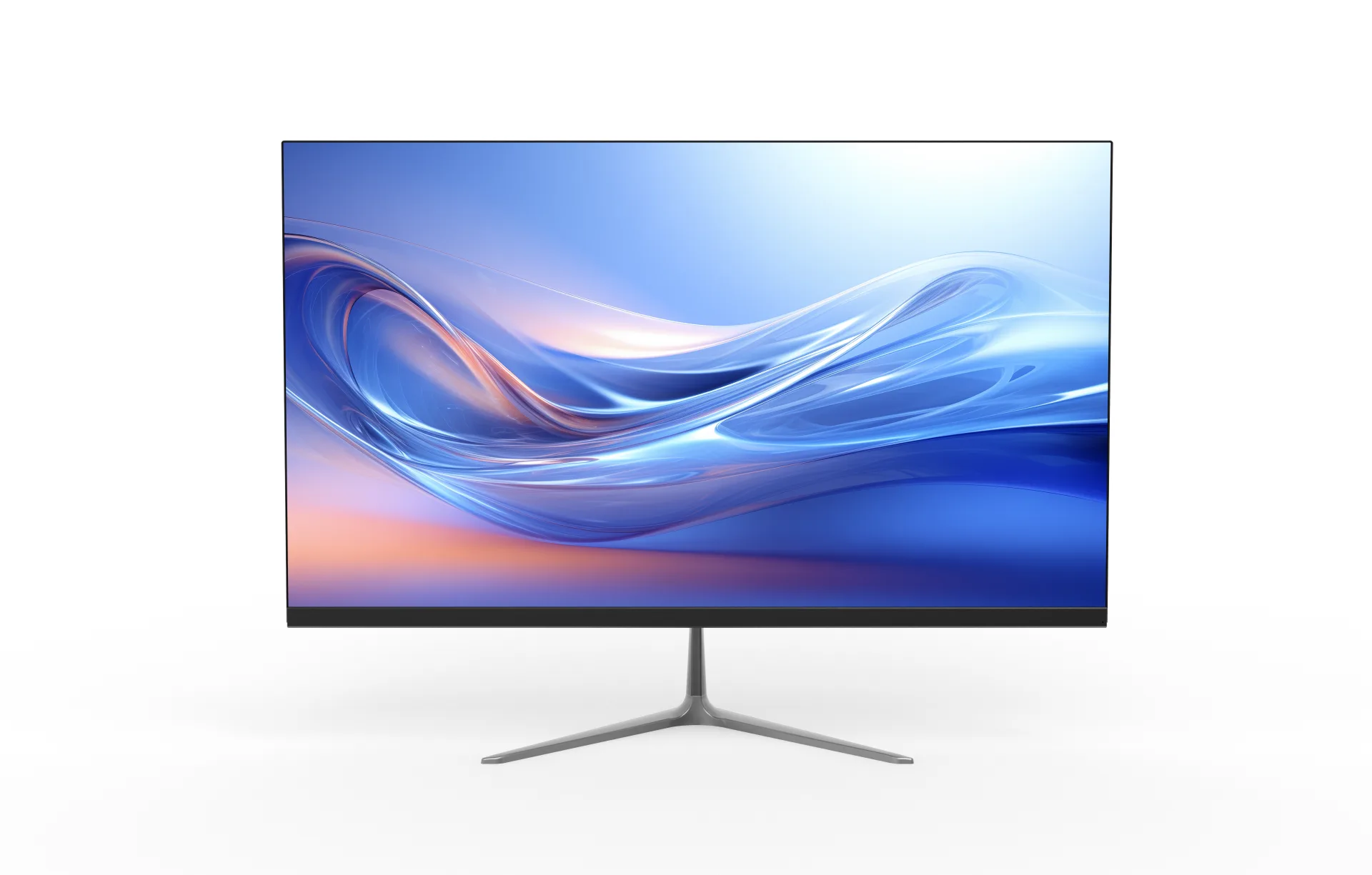

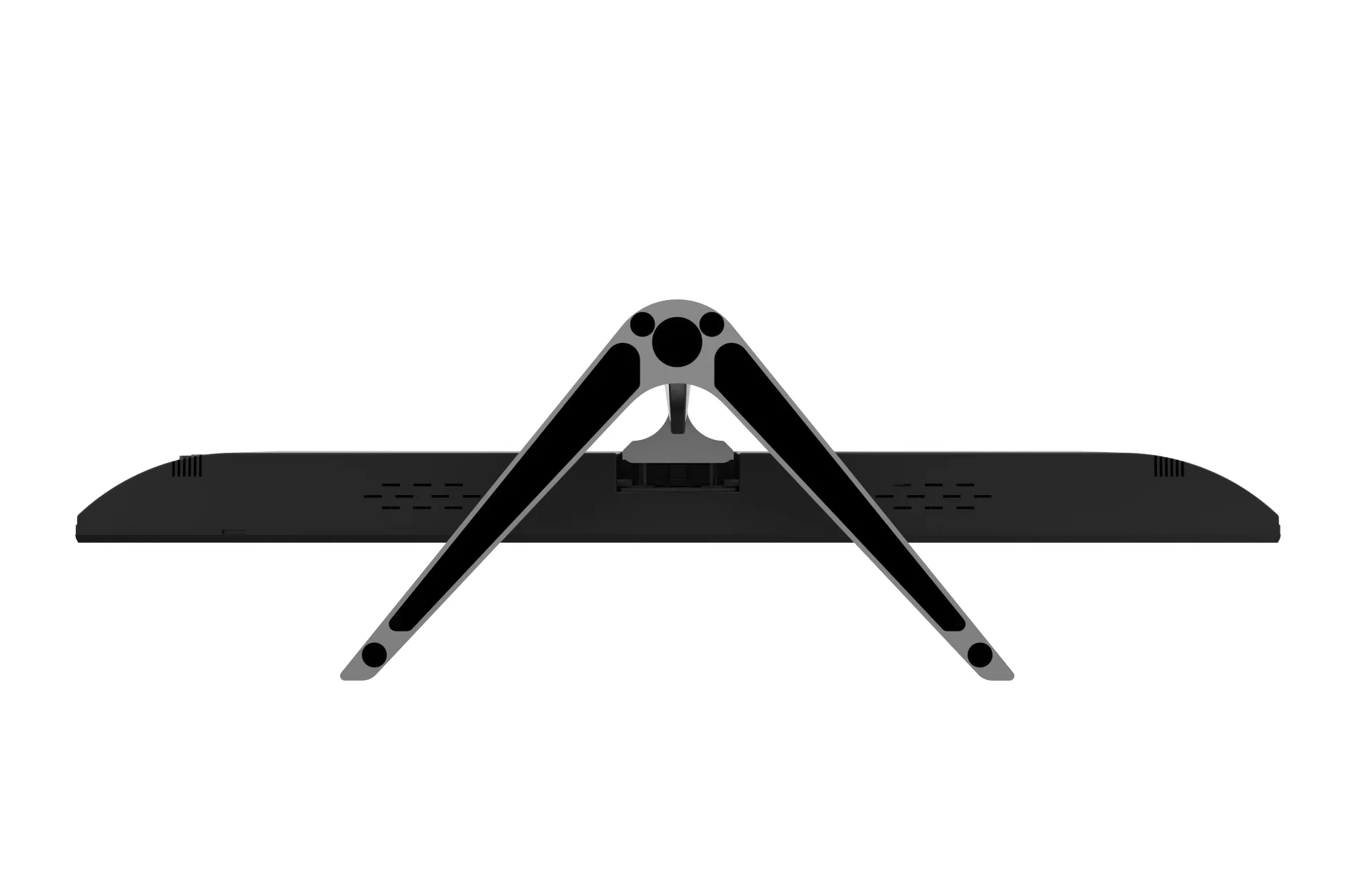

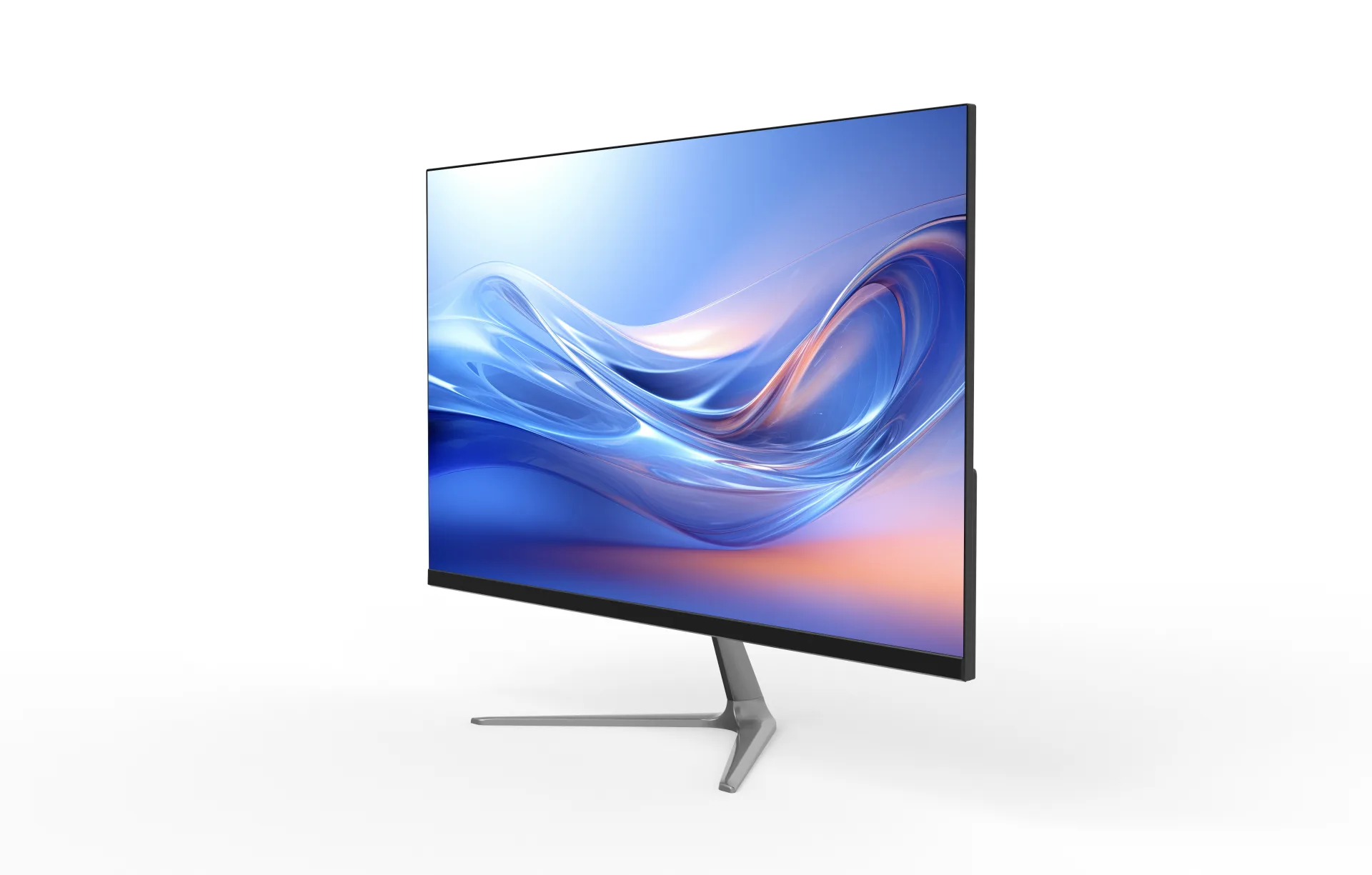

24 Inch 5ms VA Frameless LCD Monitor Back Housing Interface - Core Series
SKU: MOX24FF003
- series
- Core
- monitor type
- office monitor
- screen size
- 23.8 inch
- resolution
- FHD
- panel type
- VA/IPS
- panel brand
- HKC/CSOT/BOE
- brightness
- 250cd/m²
- HDR
- 250
- refresh rate
- 100Hz/180Hz
- bracket type
- fixed bracket
- interface
- HDMI, VGA, Audio
- sRGB
- 99%
- VESA
- 75mm*75mm
- bezel
- frameless
- aspect ratio
- 16:9
From specification to after-sales service
OEM Procedure
Our OEM workflow keeps the approved monitor specification, branding, packaging and quality requirements aligned from project confirmation through delivery and warranty support.
02
Logo Customization
Your approved logo can be applied to the front bezel, rear housing and compatible boot-up firmware. Placement, size, color and production method are checked before mass production.
03
Rating Label
We prepare the model, electrical data, serial-number format, barcode, country of origin and approved compliance information for review before printing the rear rating label.
04
Packaging
Choose a printed color box or a cost-efficient plain carton. We verify the artwork, model information, protective materials, barcode area and shipping marks before the full packaging run.
05
Parts and Accessories
The approved bill of materials identifies the stand, adapter, regional power plug, HDMI or DisplayPort cable, manuals, warranty card and any market-specific accessories included with each unit.
06
Assembly
Approved materials and documents are released to the assembly team. Monitors are assembled and programmed according to the approved sample, bill of materials and controlled work instructions.
07
Aging Test
Finished monitors operate for an agreed period so the team can check power stability, image performance, signal input and other early-life issues before the units are released for packing.
08
QC
Quality control verifies appearance, screen condition, functions, ports, firmware, labels, accessories and packaging against the approved specification and order requirements.
09
Shipment
After the final inspection, we confirm carton marks, quantities, packing documents and the agreed Incoterm, then arrange LCL, FCL or another approved shipping method.
10
Warranty Follow-up
Our team records the model and order details, reviews reported issues and coordinates parts, remote guidance or agreed onsite support according to the project warranty terms.
Need a customized monitor platform?
See how Yanxun Display adapts controller boards, interfaces and firmware for project-specific requirements.
Ordering and customization
Frequently Asked Questions
Key information about samples, production, customization, shipment and payment for OEM monitor orders.
What are the main display specifications of MOX24FF003?
MOX24FF003 is listed with 23.8 inch, FHD, VA/IPS, 100Hz/180Hz. The final panel brand, refresh-rate configuration and firmware are confirmed in the approved sample and order specification.
Which connections and mounting options are available for MOX24FF003?
The current configuration lists HDMI, VGA, Audio, fixed bracket, 75mm*75mm. Tell us the destination market and required source devices so the port layout, stand and wall-mount requirement can be checked before quotation.
Which OEM options can be confirmed for MOX24FF003?
OEM options can include the front-frame logo, compatible boot logo, OSD languages, interface configuration, rating label, accessories and carton artwork. Available combinations are confirmed against the selected housing and mainboard.
What information is needed to quote MOX24FF003?
For a MOX24FF003 quotation, send the quantity, destination, panel and refresh-rate requirement, housing color, logo, interfaces, packaging and delivery target. We will then confirm the sample plan, MOQ and production lead time.
